Open-source mixer software

GoXLR Utility

Set up your GoXLR or GoXLR Mini on Windows or macOS. Shape your mic, assign your faders, and send the right mix to your stream.

Works with existing GoXLR profiles.

GoXLR Utility
GoXLR Utility with the hardware overview and microphone gate, EQ, compressor, and de-esser controls
Mic controls

AUDIO ROUTING

Plan your stream mix

Decide what goes to headphones, Discord, and OBS in the browser. Export a plan and copy the connections into GoXLR Utility when your mixer is connected.

Open routing planner
GoXLR Utility
GoXLR Utility mixer with eight input faders, bleep volume, and three output faders
Mixer channels

MICROPHONE SETUP

Find settings for your mic

Get starting values for gain, gate, compressor, and EQ. Fine-tune them while listening to your mic in your room.

Mic setup guide

Shure SM7B

Mic type
Dynamic · 48 V off
Input gain
52–60 dB
Gate
−46 dB · 25% attenuation · 10 ms attack · 120 ms release
Compressor
−18 dB · 3.2:1 · 10 ms attack · 140 ms release · 0 dB makeup
EQ
Flat to start · bass, mid and treble at 0 dB
De-esser
0% to start, where available

Speak 5–10 cm from the windscreen. Start at the low end of the gain range and raise it while watching the meter. In Mic → Mic Setup, turn the gate off while setting gain. Start low and aim for normal speech peaks around −12 to −6 dBFS. Check again while speaking loudly. Set the gate threshold a few dB above your room noise while staying below quiet speech. Lower it if it cuts off words.

GoXLR Utility
GoXLR Utility fader assignment and cough button settings
Fader configuration

DEVICE SUPPORT

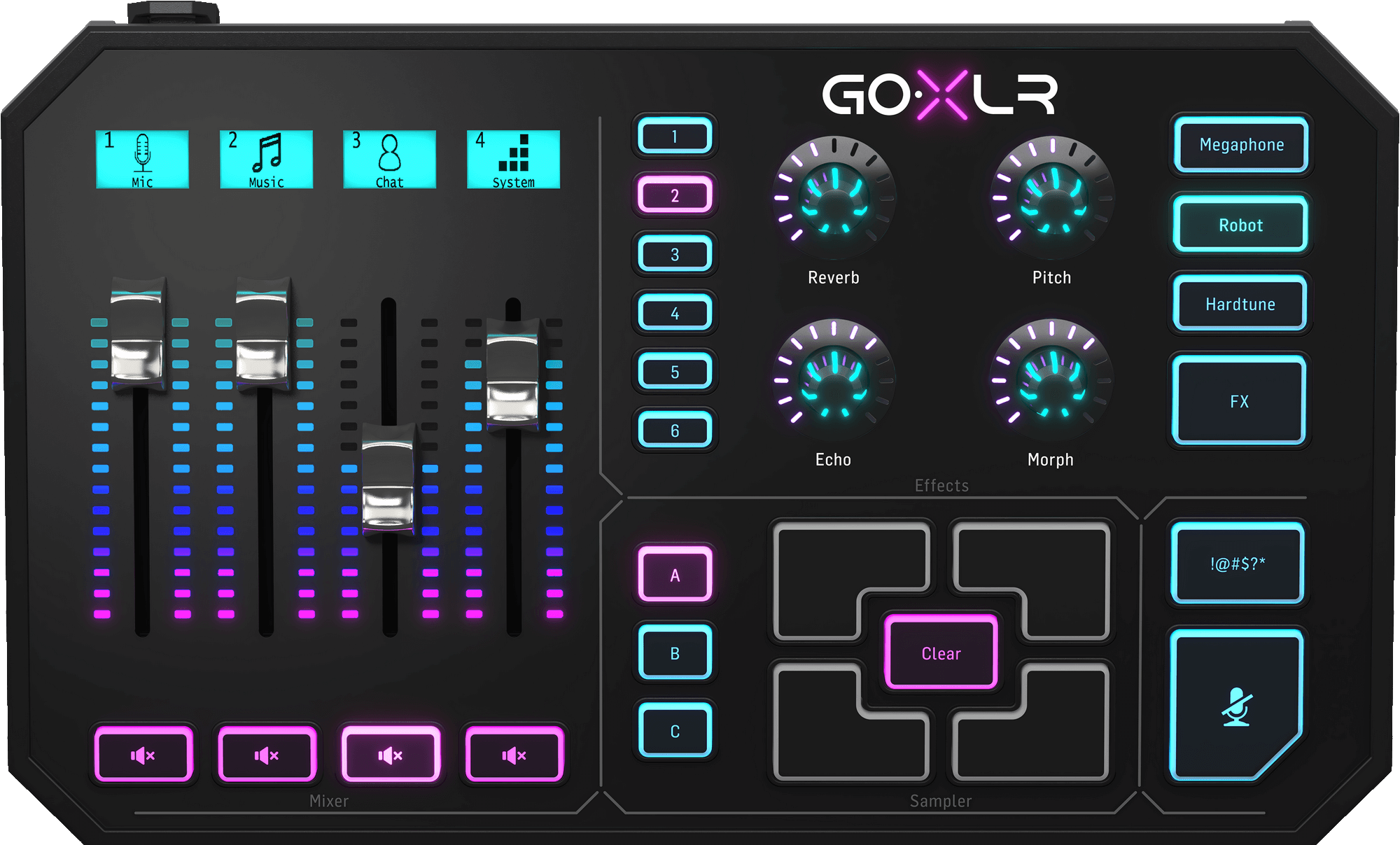

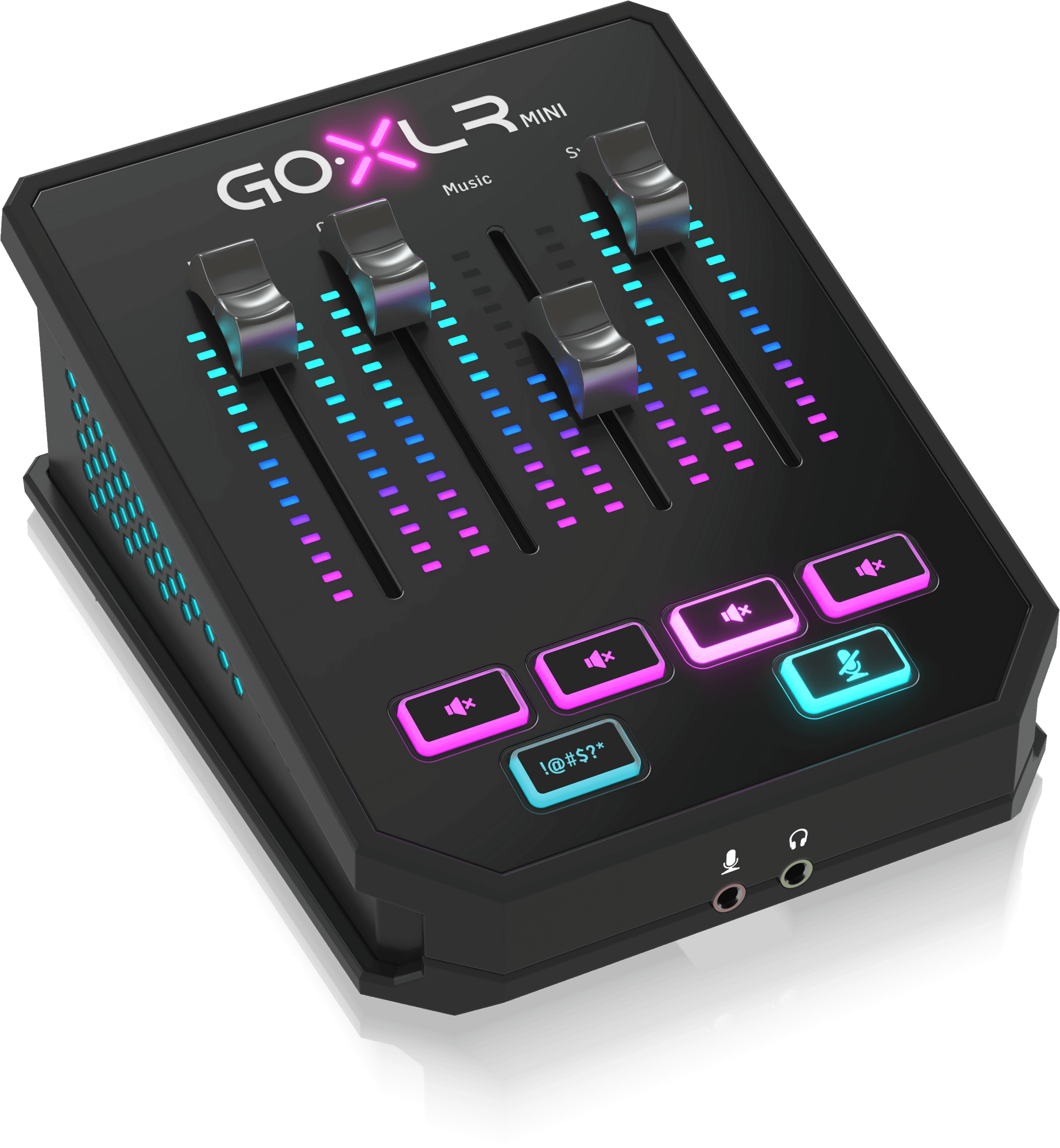

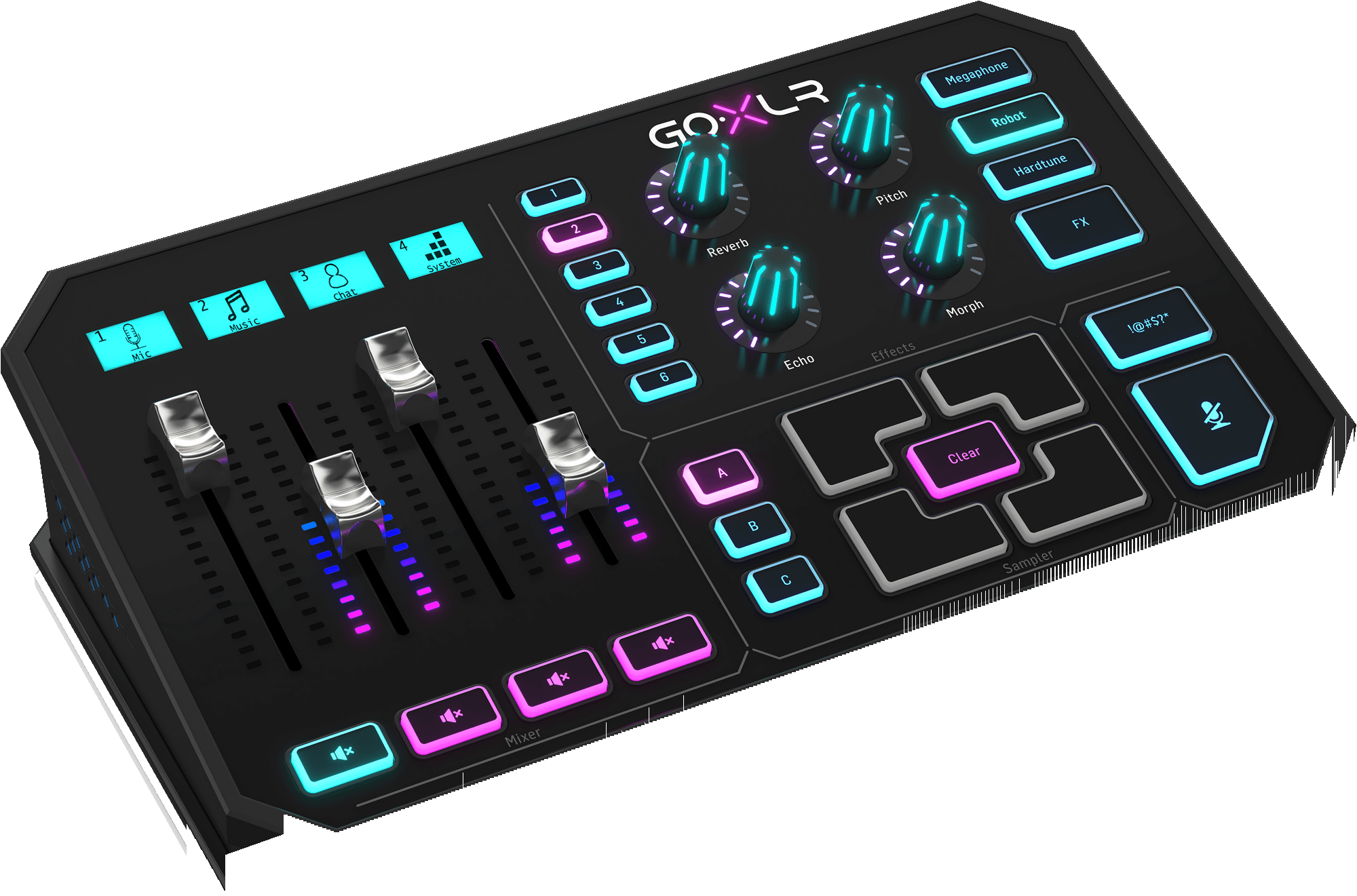

GoXLR and GoXLR Mini

Assign hardware faders, set mute targets, configure lighting, and save your device settings. Explore the sampler and voice effects on the full-size GoXLR.

FAQ

Before you install

Can I use the mixer tools without owning a GoXLR?

Try virtual routing in your browser without owning a mixer. Connect a physical GoXLR or GoXLR Mini to control live audio with GoXLR Utility.

Do I still need the GoXLR driver on Windows?

Yes. Install the TC-Helicon driver first. Then quit the manufacturer’s app before opening GoXLR Utility so both apps aren’t trying to control the device.

Can I use my existing GoXLR profiles?

Yes. In the Utility, open the folder from the Profiles pane, copy in your device profiles, then load the one you want. Use the Microphone Profiles pane for mic profiles.

Read all questions
